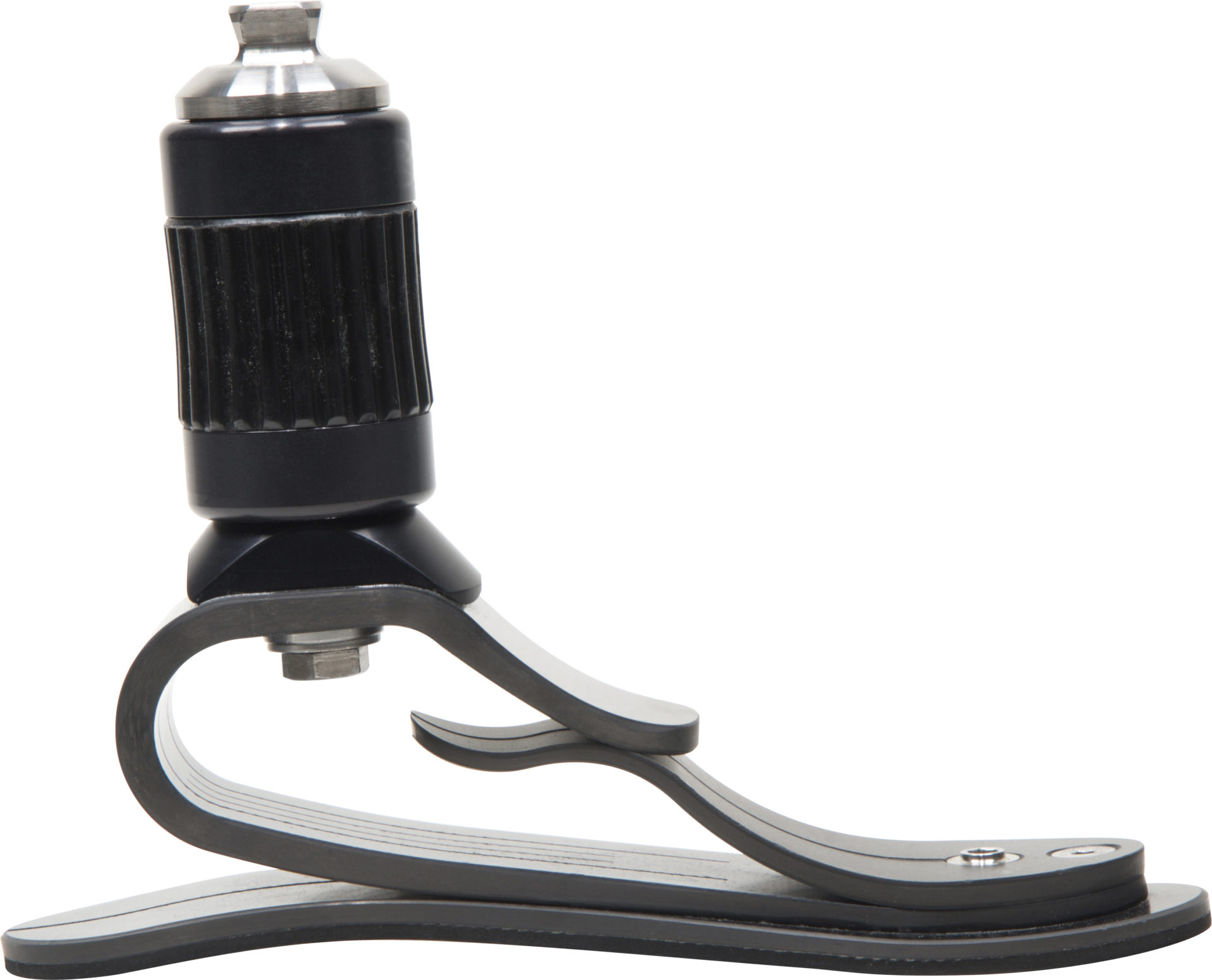

Element DS

The Element DS’s design utilizes an innovative 3rd carbon composite spring that supports the foot in each phase of the gait cycle. From heel strike, to mid-stance and toe off; the result is a foot with unsurpassed smoothness, stability and energy return.

Other composite foot designs have hesitation at midstance due to a delay in the center of pressure in the transition from heel to toe. Commonly referred to as a “dead spot”; it is inherent in other designs due to the loss of dynamic support as one or a series of stiff carbon is loaded. The Element’s patent pending design eliminates this dead spot by allowing the upper spring to load the 3rd Element carbon spring at midstance. This enables the foot to release its energy in the latter part of the gait cycle and move the area of stability forward in the foot. The Element DS combines smooth rollover with stability in the forefoot to enable even stride lengths and a more symmetrical gait.

Suggested L-Codes

L5984, L5987
PDAC Approved

Suggested L-Codes are provided as a reference only. It is the responsibility of the practitioner and/or patient care facility submitting this claim to determine and submit the correct coding within all established rules and guidelines.

Features

For comfortable use on flat or uneven ground
Unique three element design resulting in smooth rollover and superior stability
Innovative Micro-Slice technology for multi-axial performance
Vertical shock and 60º of axial rotation for increased socket comfort

Featured Specifications

Functional Level

K3, K4

Pyramid (mm)

Sizes

22 - 30 cm

Mount

Ti Pyramid

Patient Weight Maximum

275 lbs. (125 kg)

Weight

22.3 oz. (636 g)

Build Height

6.0 - 6.7 in. (153 - 171 mm)

Heel Height

0.4 in. (10 mm.)

Includes foot with Durashock unit and Spectra Sock. Foot shell sold separately (see below). The foot model recommendations on the selection chart are based on average patients, engaged in normal activities. If your patient is more active than average or lifts heavy loads as part of a daily routine, then selecting the next weight category higher is advised.

Warranty

3 years from date of patient fitting
60-day patient trial from date of patient fitting
Foot Shell: 6 months from date of patient fitting

The Element DS has been designed and manufactured for specific patient weights. Failure to follow the weight guidelines and/or overload conditions caused by the patient, such as heavy lifting, high impact sports or abusive activities that would otherwise damage the natural limb, may void the warranty.
