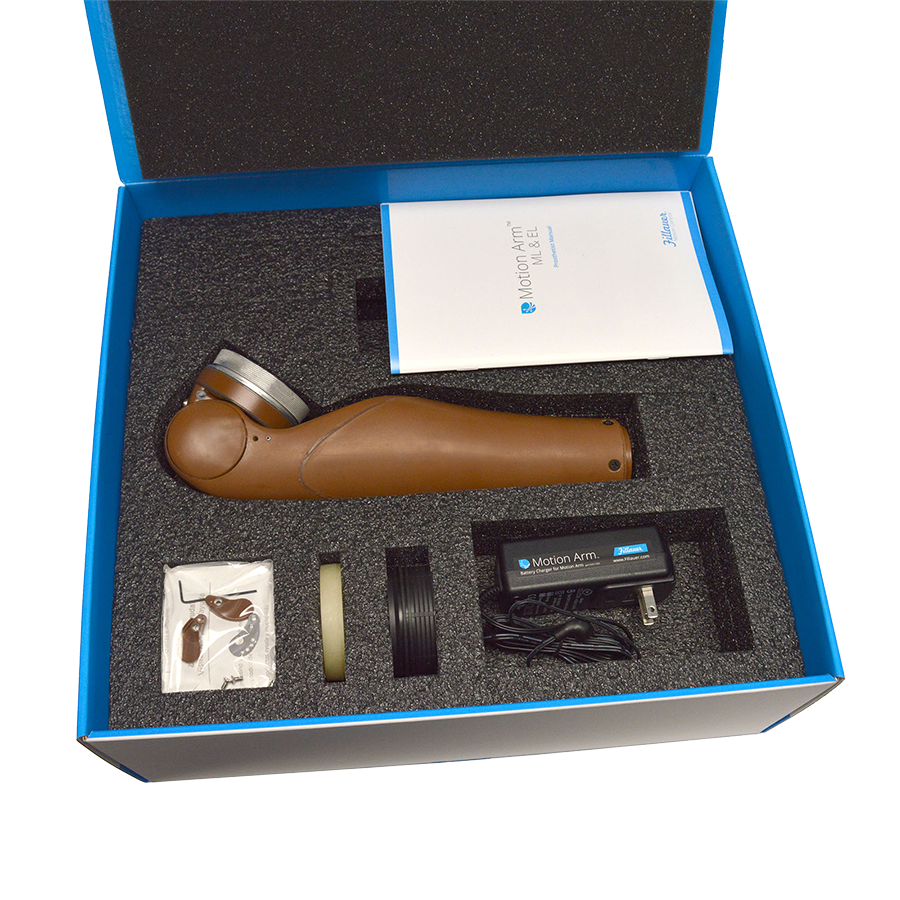

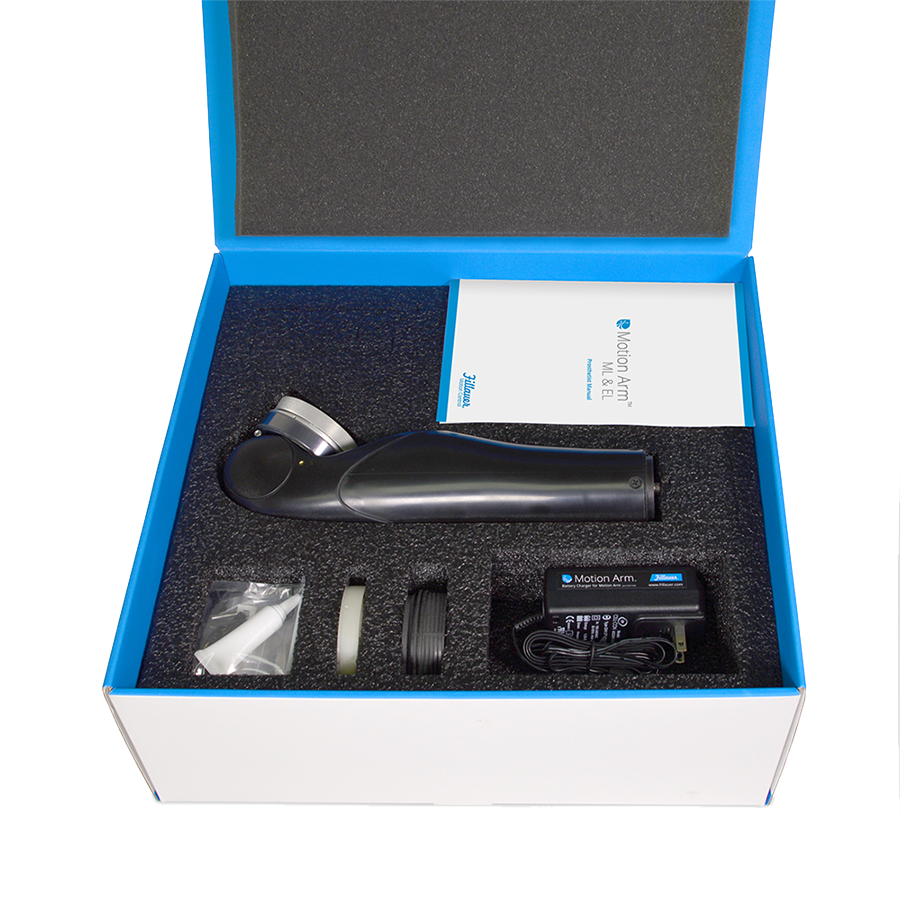

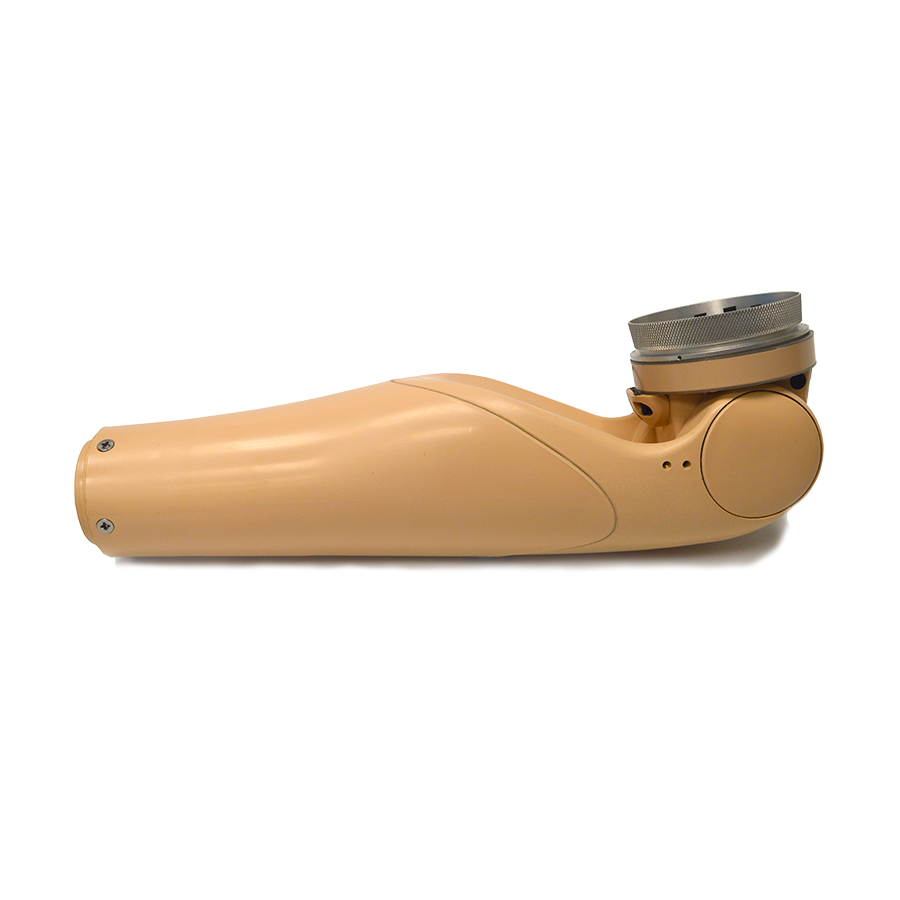

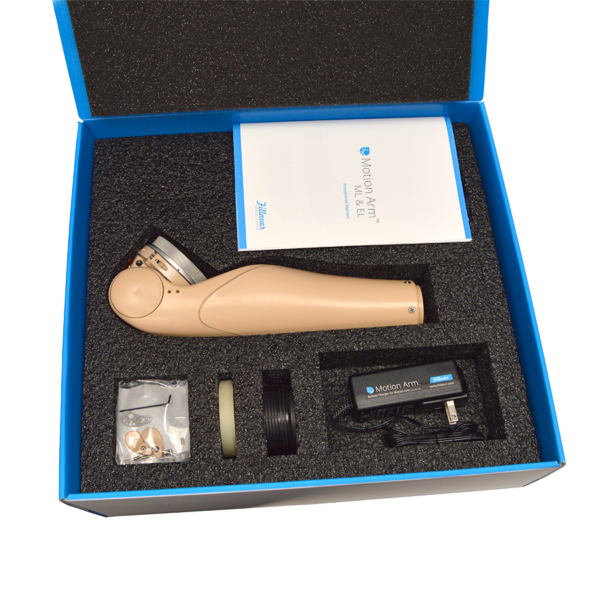

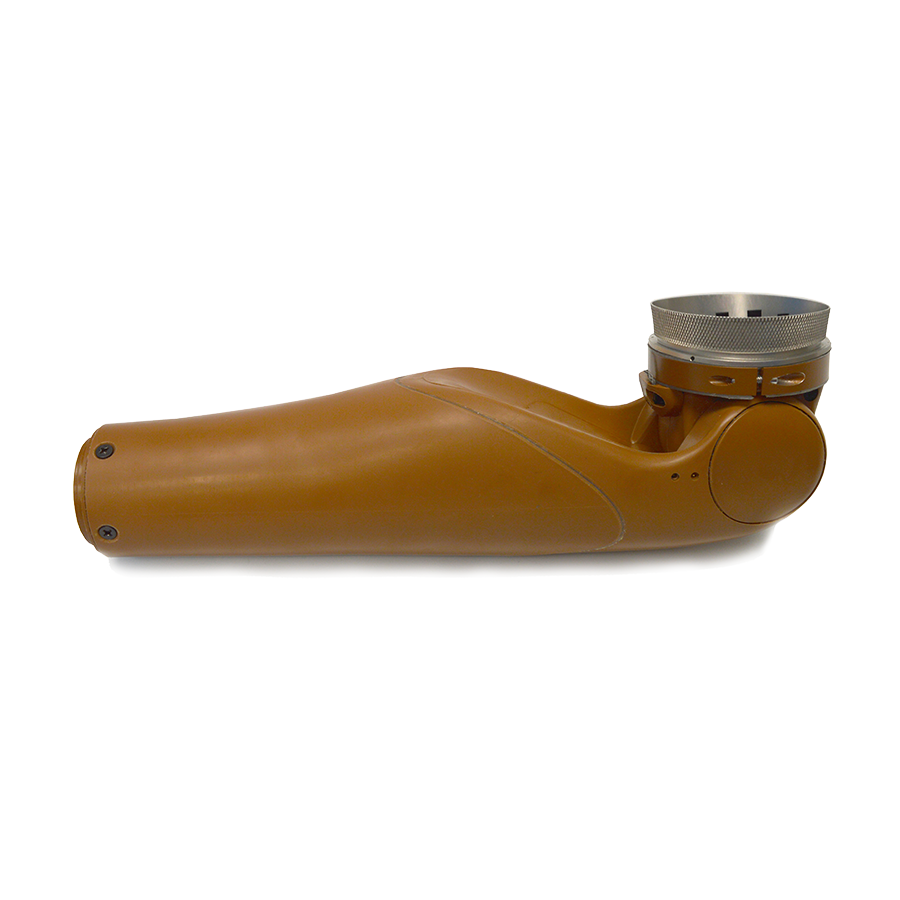

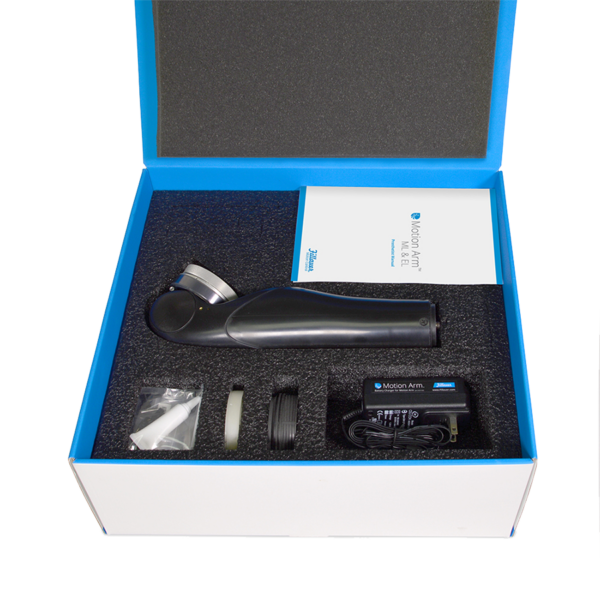

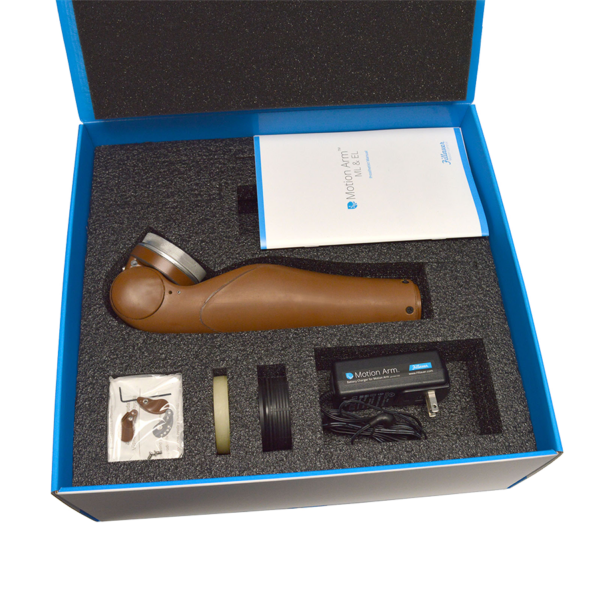

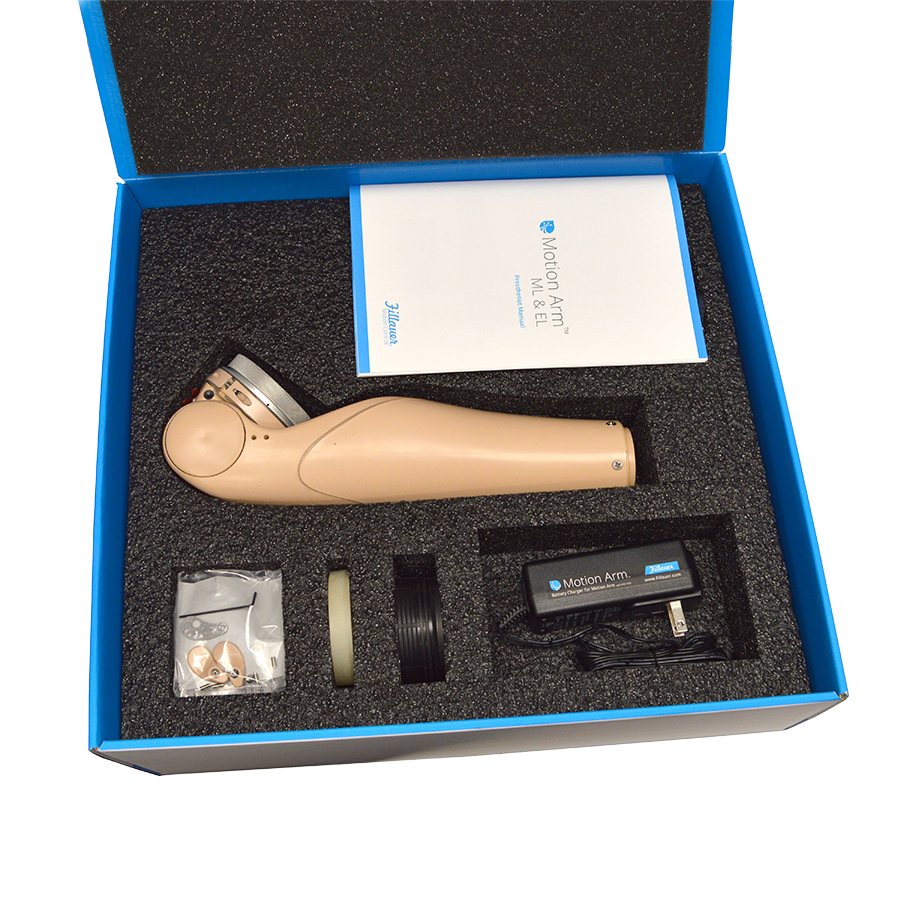

The Motion Arm Hybrid Elbow is the first IP67 dustproof, waterproof Automatic Forearm Balance Hybrid Elbow. Designed to be the most robust elbow available, the Motion Arm comes in two models, the Manual Lock and Electric Lock. The Motion Arm EL has an electric lock/unlock with 3 EMG trigger options and/or the use of an external switch while the ML (Manual Lock) combines a body powered lock/unlock system with battery power. Both arms come with a 3000 mAhr internal battery. Able to support up to 50 foot pounds in the locked position this elbow is up to all tasks. Bluetooth connectivity allows adjustment of lock/unlock triggers via Motion Arm User Interface, MAUI available for iPhones or iPad at the Apple App Store at no charge. Additional choices include: Type of input (Triad Preamp, Linear Potentiometer, Force Sensor, or Touch Pads); Lift Tabs; forearm cutting tool (1800091); or special order ultra short forearm (must be modified by Motion Control). If you are making a purchase from Europe you will also need battery charger adapter number (1390053). Call Fillauer Motion Control at 801-326-3434 for details. Box includes the arm, wall charger cord, lift tab kit, dummy lamination collars, and silicon gel. Available in 3 colors.
Suggested L Codes: L6882, L6955, L7499
Interested in these products?

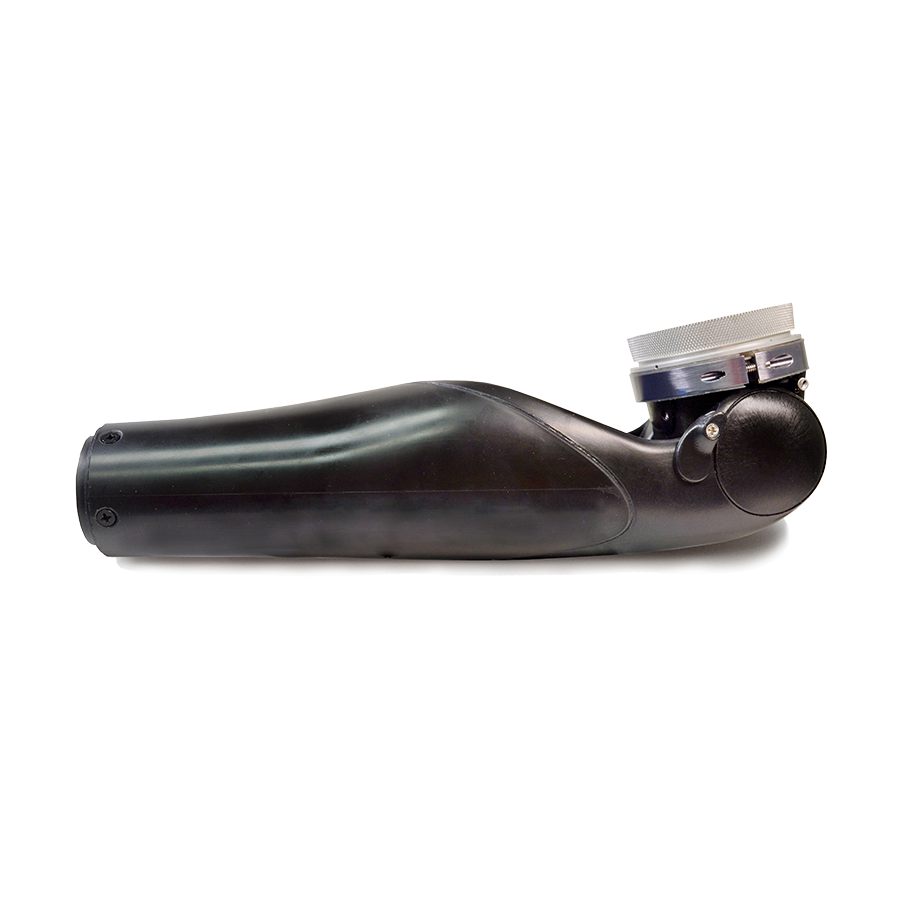

Introducing the Motion Arm. Robust, durable and IP67 certified dustproof/waterproof they are built to be used!
The Motion Arm Manual Lock (ML) body powered hybrid elbow for use with electric terminal devices and passive or electric wrist rotators. The lock mechanism will support up to 50ft-lbs. The elbow comes with an adjustable lift tab and spectra lock/unlock cable. Indicator lights show the amount of charge in the battery.
The Motion Arm EL has an electric lock/unlock mechanism perfect for short transhumeral and high-level amputation levels as well as mid to long transhumeral amputation levels. There are 3 lock/unlock triggers and the availability use a switch. To adjust the trigger parameters, the Motion Arm User Interface (MAUI) easily connects your Apple® handheld device to the processer via Bluetooth®.
LANGUAGE | PROSTHETIST | USER | OTHER | |
---|---|---|---|---|
![]() |
English | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Spanish/Español | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
French/Français | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
German/Deutsch | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Italian/Italiano | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Swedish/Svenska | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Norwegian/Norsk | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Danish/Dansk | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Dutch/Nederlands | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Finnish/Suomi | Prosthetist Manual | User Guide | Cutting Guide |
![]() |
Polish/Polski | Prosthetist Manual | User Guide | Cutting Guide |
