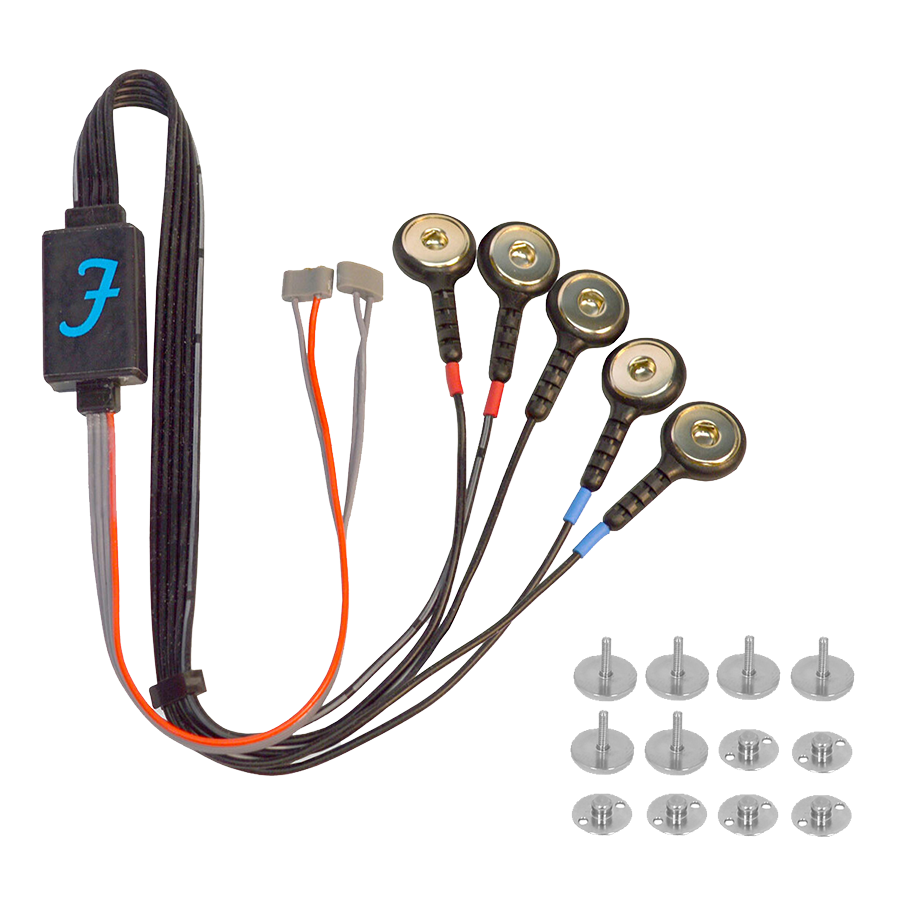

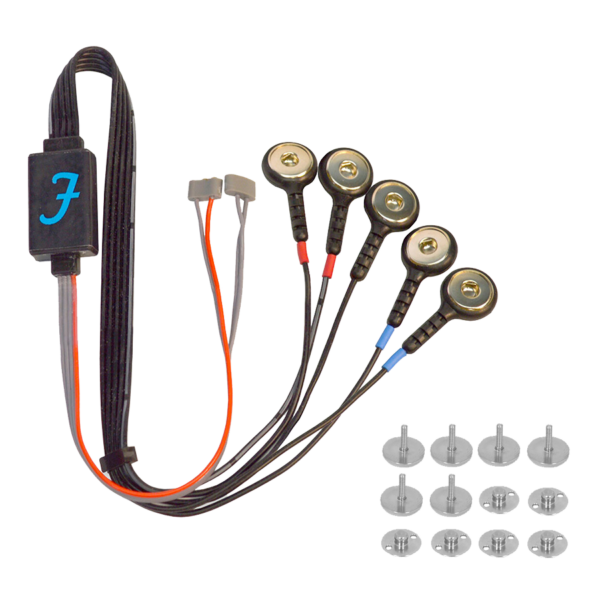

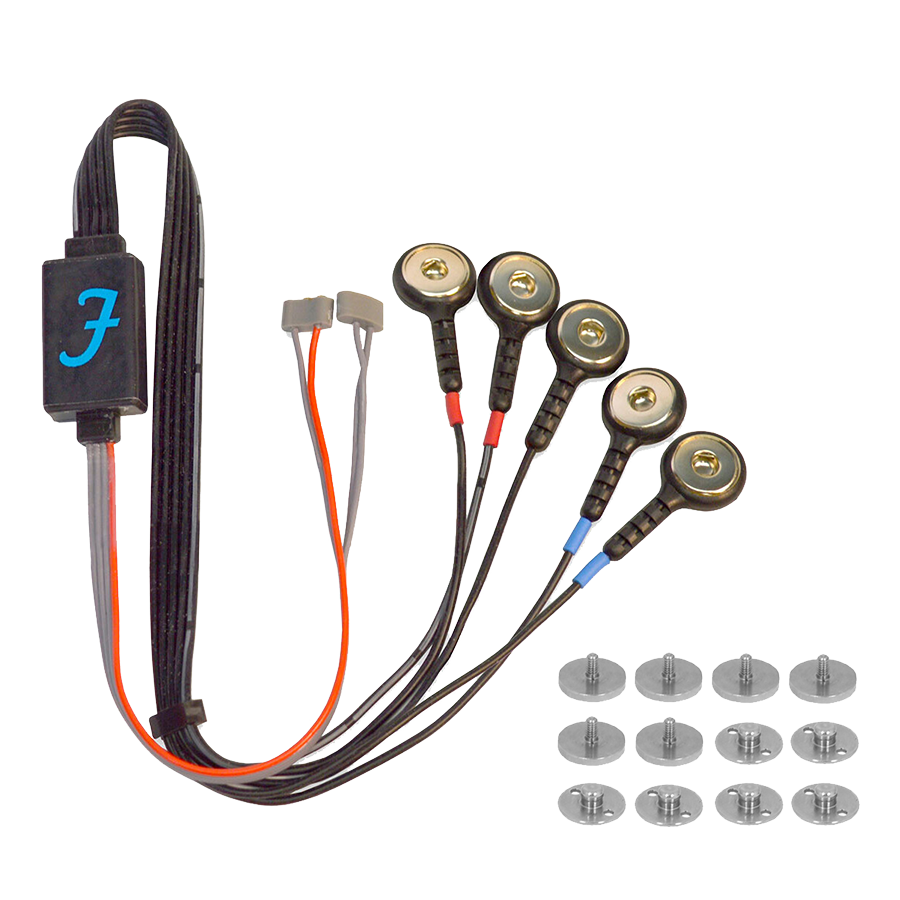

Myo/One with Snap Electrodes
Myo/One Electrode System with dual channel control, snap electrodes for a 3-6mm a socket or liner and a 18″ standard length cable. Extension cables are also available. The Fillauer Myo/One Electrode System replaces cables, dummies, sealing rings and multiple devices with one simple cable. Myo/One was developed in partnership with COAPT to produce a streamlined, waterproof system that can reduce hours of trial and error into a couple quick minutes. Remote electrode installation with a simple screw-together design can be performed in a matter of seconds whether it is a diagnostic socket or a definitive device. Quick installation make them easy to move to adjust positioning of EMG sites, a simple dual-channel EMG control. Bluetooth connectivity simplifies gain adjustment and can also detect a lack of electrode contact. Remote electrode fits socket thickness 1.9 – 5.5 mm. The Myo/One Electrode System is not compatible with the ProControl2 System. Plese select Triad Electrodes for compatibiliity with ProControl. Comes in two liner thicknesses.
PRODUCTS IN THIS SERIES:
Ordering Information
Interested in these products?
Drill. Pop. Done.
Fitting a myoelectric device has never been easier.
The dual-site Myo/One Electrode System replaces cables, dummies, sealing rings and multiple devices with one simple cable.
Myo/One was developed in partnership with Coapt to produce a streamlined, waterproof system that can reduce hours of trial and error into a couple quick minutes.
Two Electrode Options
Myo/One is available with either Coapt’s new ControlSeal™ Electrode Domes (shown) for socket installations or Fillauer snap electrodes for use with prosthetic liners. This gives clinicians the versatility to fit any patient presentation.
Built-in Preamp
All signals are filtered and amplified by a single, small (1 × ⅝ × ¼ in.), sealed Bluetooth device. No more holes in the socket to access signal amplification. No more sweat damage to the electrode.
Universal 3-Pin or Utah Arm Connectors
Compatible with almost all dual-site myoelectric devices.

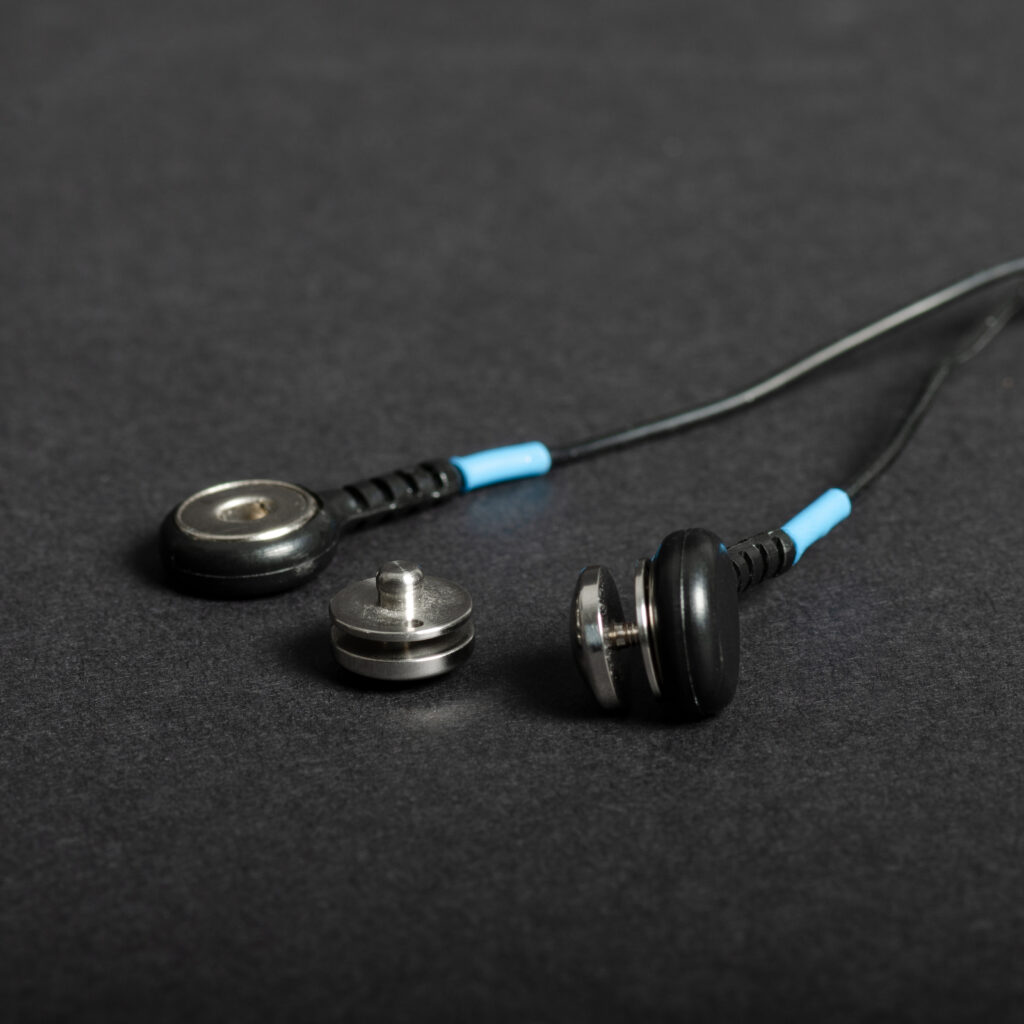

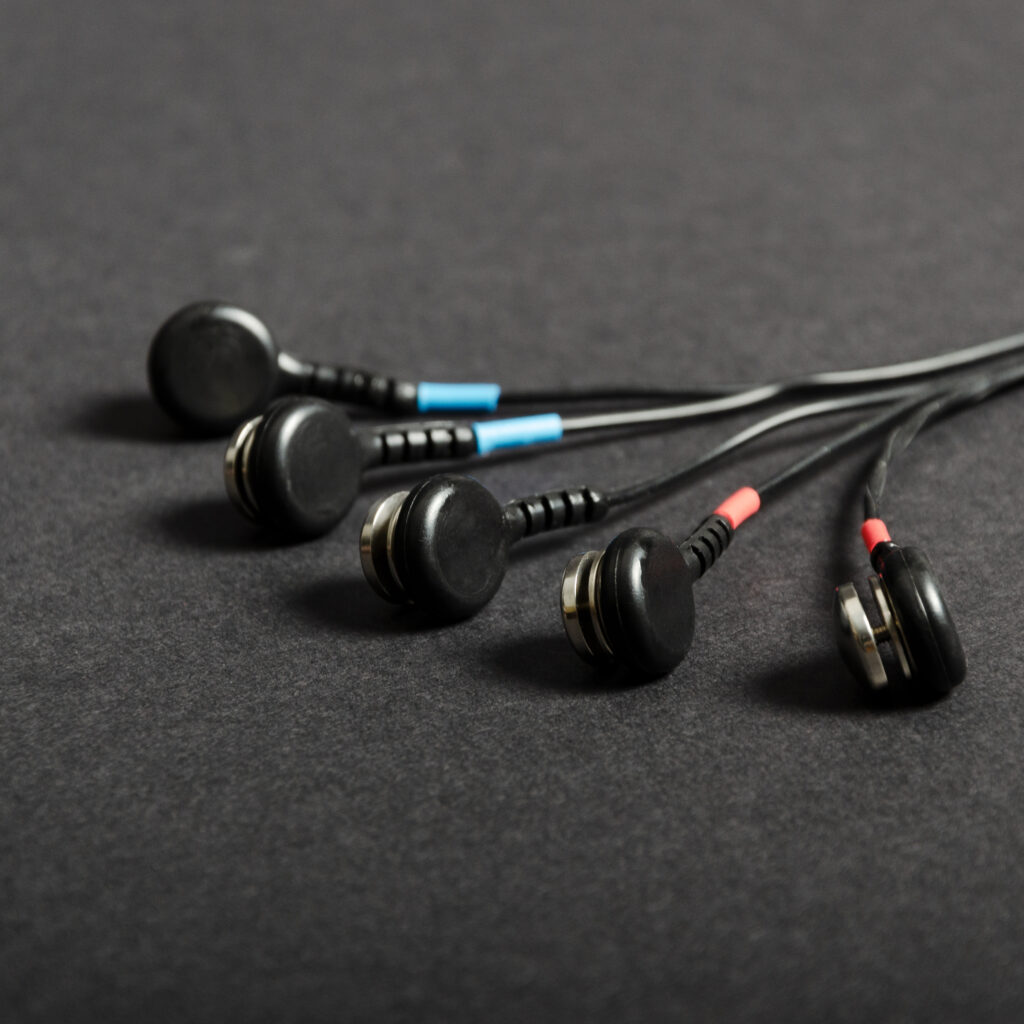

Myo/One with Snap Electrodes
For wearers that utilize roll on liners, Motion Control Snap Electrodes are back! Snap Electrodes are affixed to the liner, it is rolled on the limb and the electrode cables are simply snapped into place. Doffing the prosthesis is simply the process in reverse.
Motion Arm User Interface (MAUI) Software
The MAUI app, available at the Apple Store, enables seamless wireless control of Myo/One and your terminal devices. Download it on your phone or tablet, follow the simple setup, and use the prosthetist or user-specific access code for tailored configuration.
