Utah Arm 3+ Package

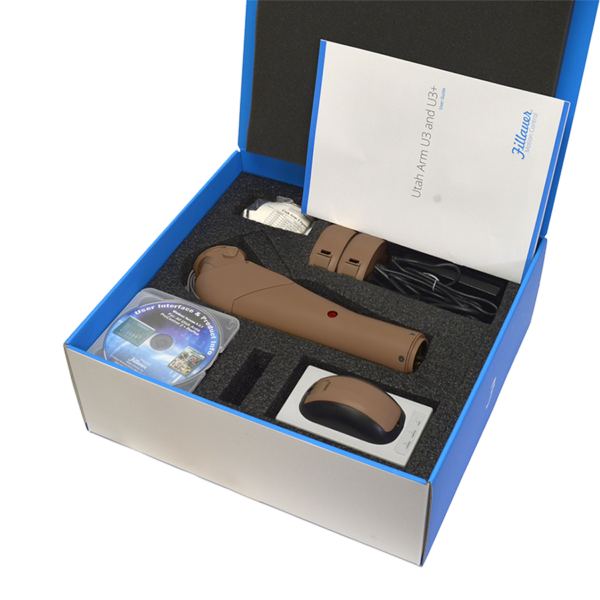

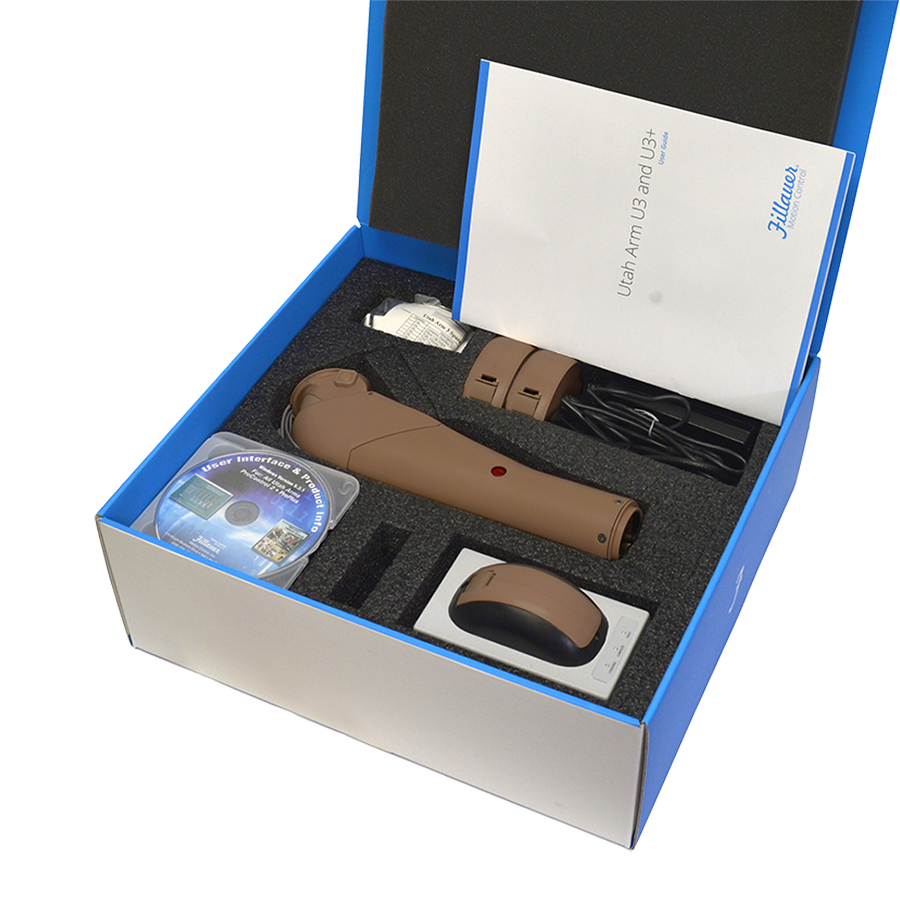

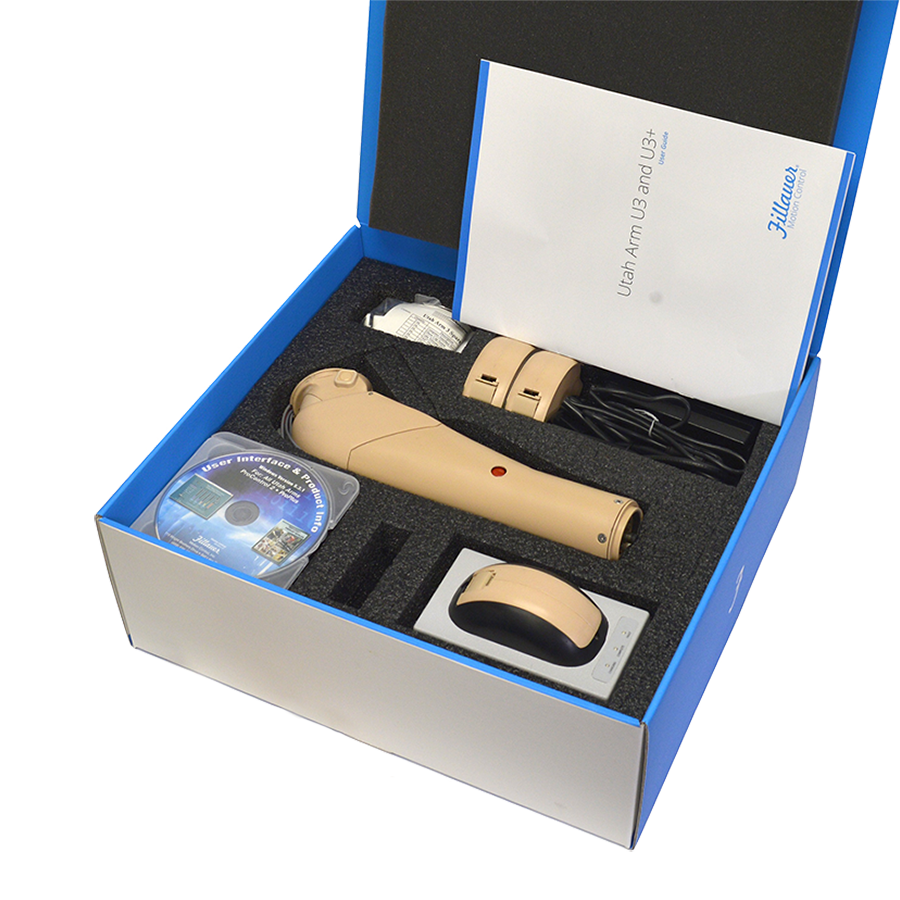

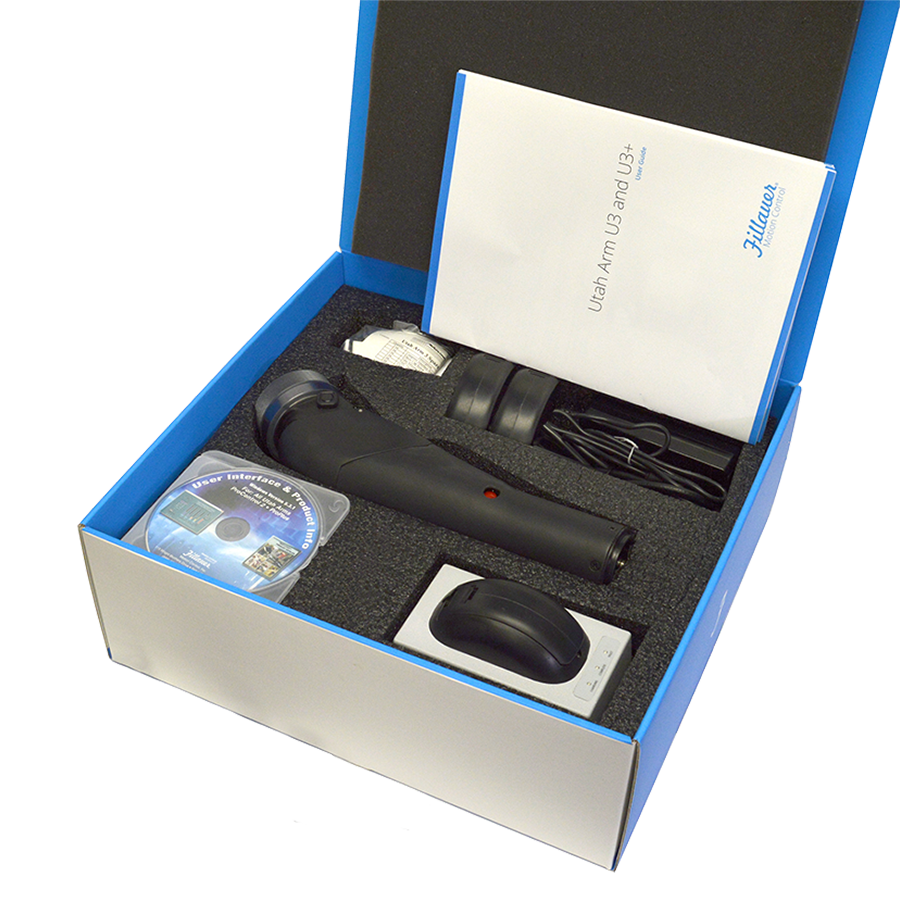

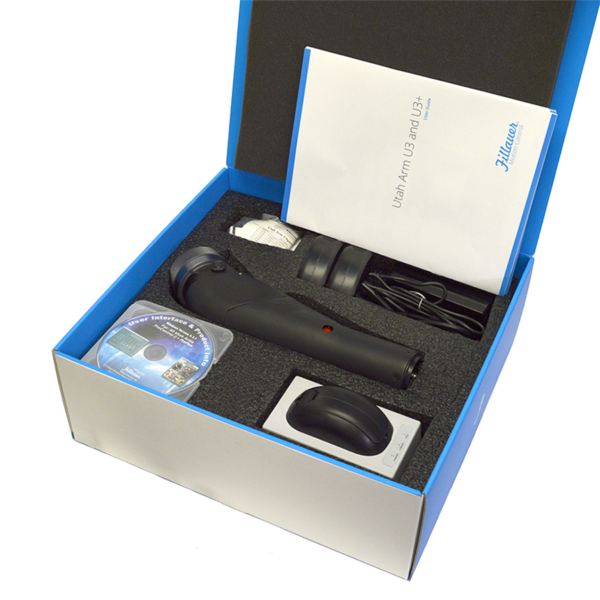

The sturdy Utah Arm 3+ provides sensitive and precise electronic control of the elbow and optional Hand or ETD simultaneously. The 3+ features silent free swing and a friction brake that locks the elbow in an infinite number of postions. The elbow is compatable with the Motor Direct Wrist Rotator. Compatible with almost all other manufacturers’ hands and terminal devices. The Utah Arm 3+ Package comes standard with a 3-Wire harness and standard forearm length (10-3/4″ or 27.5cm), (3) Battery Packs, and (1) Battery Charger with US configured Power Cord. Comes in three colors. Additional configuration of the arm include: Type of input (Triad Preamp, Linear Potentiometer, Force Sensor, or Touch Pads); Wire harness preference (1-Wire, 3-Wire, or 5-Wire); Forearm Cover Length (standard, short, ultra-short, or extended); Power Cord (US or European). Call Fillauer Motion Control at 801-326-3434 for the correct part numbers and other details.
Suggested L Codes: L6611, L6955, L7180, L7181, L7499
PRODUCTS IN THIS SERIES:
Interested in these products?
Utah Arm Manuals
Utah Arm
An industry standard for decades, the Utah Arm has two microprocessors which allow for simultaneous elbow and hand function, a computer interface for responsive adjustments, and works with multiple input devices including advanced pattern recognition like the COAPT Complete Control system. Easily attaches to the TASKA Hand, MC Hand, ETD, ETD2, and many other manufacturer’s devices.
Utah Arm 3
The Utah Arm 3 (U3) is the lightest microprocessor-controlled elbow available. This third-generation elbow adds high-strength components and user-set response control to the tried and true design. Can hold up to 50lbs in the locked position. From machine shops to building log cabins, the Utah Arm U3 will get the job done. Comes with a 2 year warranty with an additional 2 years available.
Utah Arm 3+
The Utah Arm 3+ builds on the same rugged features as the U3 but includes silent freeswing which allows for a natural arm swing while walking, and a silent friction brake which locks the elbow in an infinite number of positions without a sound.
Resources
| Utah Arm Remote Power Modification Manual | visit |
