E-400 Elbow
The E-400 Elbow is a large-sized elbow, designed to offer multiple locking positions for precise control. It accommodates a lift assist unit on either the left or right side, providing flexibility and enhanced support. It includes a turntable lamination collar and saddle assembly. The E-400 has an outside cable exit for seamless integration.
PRODUCTS IN THIS SERIES:
Ordering Information
Interested in these products?

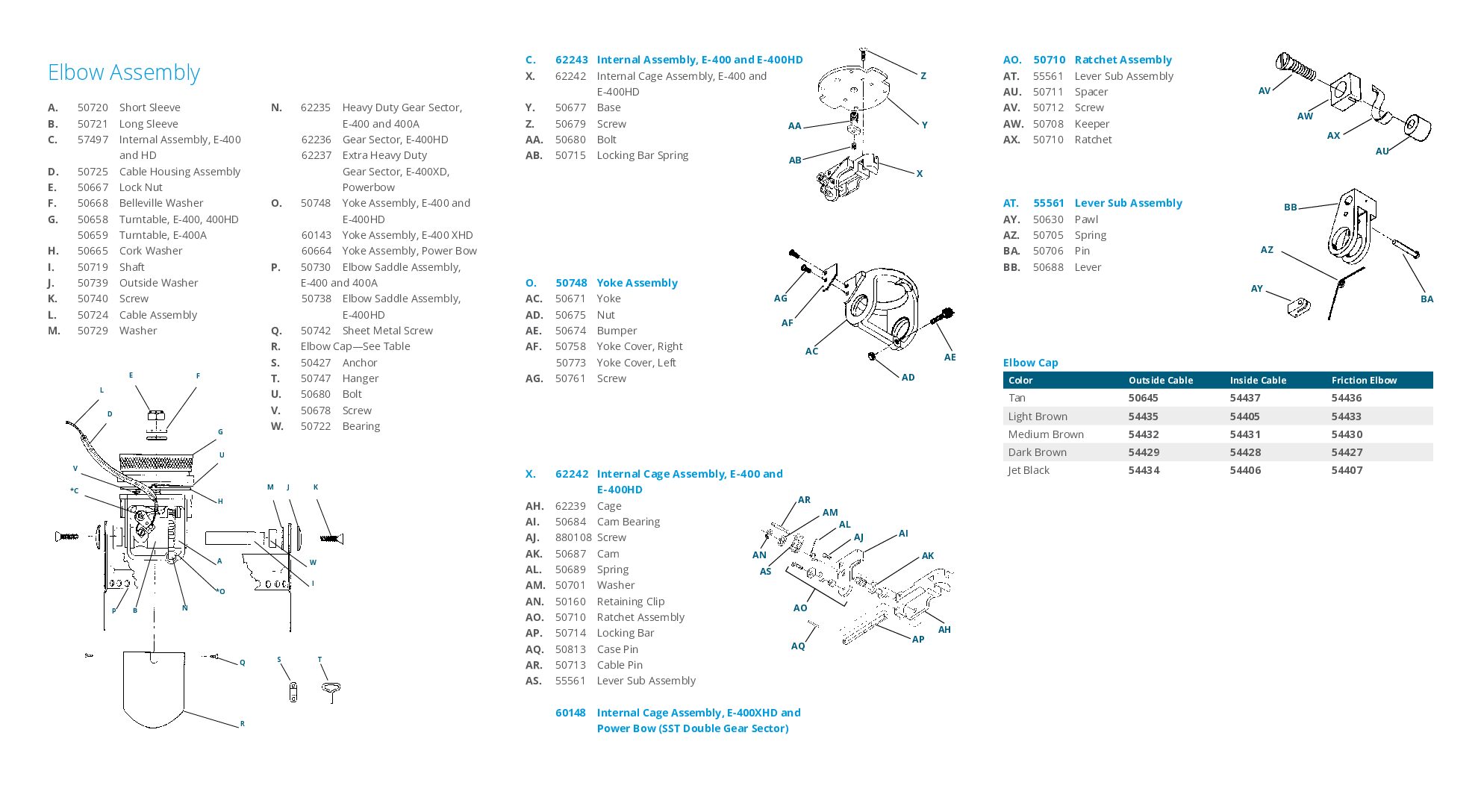

Elbow Assembly
Elbow Assembly
| A. | 50720 | Short Sleeve |
| B. | 50721 | Long Sleeve |
| C. | 57497 | Internal Assembly, E-400 and HD |
| D. | 50725 | Cable Housing Assembly |
| E. | 50667 | Lock Nut |
| F. | 50668 | Belleville Washer |
| G. | 50658 | Turntable |
| 50659 | Turntable, E-400A | |
| H. | 50665 | Cork Washer |
| I. | 50719 | Shaft |
| J. | 50739 | Outside Washer |
| K. | 50740 | Screw |
| L. | 50724 | Cable Assembly |
| M. | 50729 | Washer |
| N. | 62235 | Heavy Duty Gear Sector, E-400 and E-400A |
| 62236 | Gear Sector, E-400HD | |
| 62237 | Extra Heavy Duty Gear Sector, E-400XD, Powerbow | |
| O. | 50748 | Yoke Assembly, E-400 and E-400HD |
| 60143 | Yoke Assembly, E-400XHD | |
| 60664 | Yoke Assembly, Power Bow | |
| P. | 50730 | Elbow Saddle Assembly, E-400 and E-400A |
| 50738 | Elbow Saddle Assembly, E-400HD | |
| Q. | 50742 | Sheet Metal Screw |
| R. | Elbow Cap | |
| S. | 50427 | Anchor |
| T. | 50747 | Hanger |
| U. | 50680 | Bolt |
| V. | 50678 | Screw |
| W. | 50722 | Bearing |
Elbow Assembly
C. 62243 – Internal Assembly, E-400 and E-400HD
| X. | 62242 | Internal Cage Assembly, E-400 and E-400HD |
| Y. | 50677 | Base |
| Z. | 50679 | Screw |
| AA. | 50680 | Bolt |
| AB. | 50715 | Locking Bar Spring |
Yoke Assembly
O. 50748 – Yoke Assembly
| AC. | 50671 | Yoke |
| AD. | 50675 | Nut |
| AE. | 50674 | Bumper |
| AF. | 50758 | Yoke Cover Right |
| 50773 | Yoke Cover Left | |
| AF. | 50761 | Screw |
Internal Cage Assembly
X. 62242 – Internal Cage Assembly, E-400 and E-400HD
| AH. | 62239 | Cage |
| AI. | 50684 | Cam Bearing |
| AJ. | 880108 | Screw |
| AK. | 50687 | Cam |
| AL. | 50689 | Spring |
| AM. | 50701 | Washer |
| AN. | 50160 | Retaining Clip |
| AO. | 50710 | Ratchet Assembly |
| AP. | 50714 | Locking Bar |
| AQ. | 50813 | Case Pin |
| AR. | 50713 | Cable Pin |
| AS. | 55561 | Lever Subassembly |
Ratchet Assembly
AO. 50710 – Ratchet Assembly
| AT. | 55561 | Lever Subassembly |
| AU. | 50711 | Spacer |
| AV. | 50712 | Screw |
| AW. | 50708 | Keeper |
| AX | 50710 | Ratchet |
Lever Subassembly
AT. 55561 – Ratchet Assembly
| AY. | 50630 | Pawl |
| AZ. | 50705 | Spring |
| BA. | 50706 | Pin |
| BB. | 50688 | Lever |
Additional Accessories
Related Products
Our warranty has you covered.
This product is warranted for 24 months from the date of shipment from a Fillauer warehouse or from a Fillauer authorized distributor.
