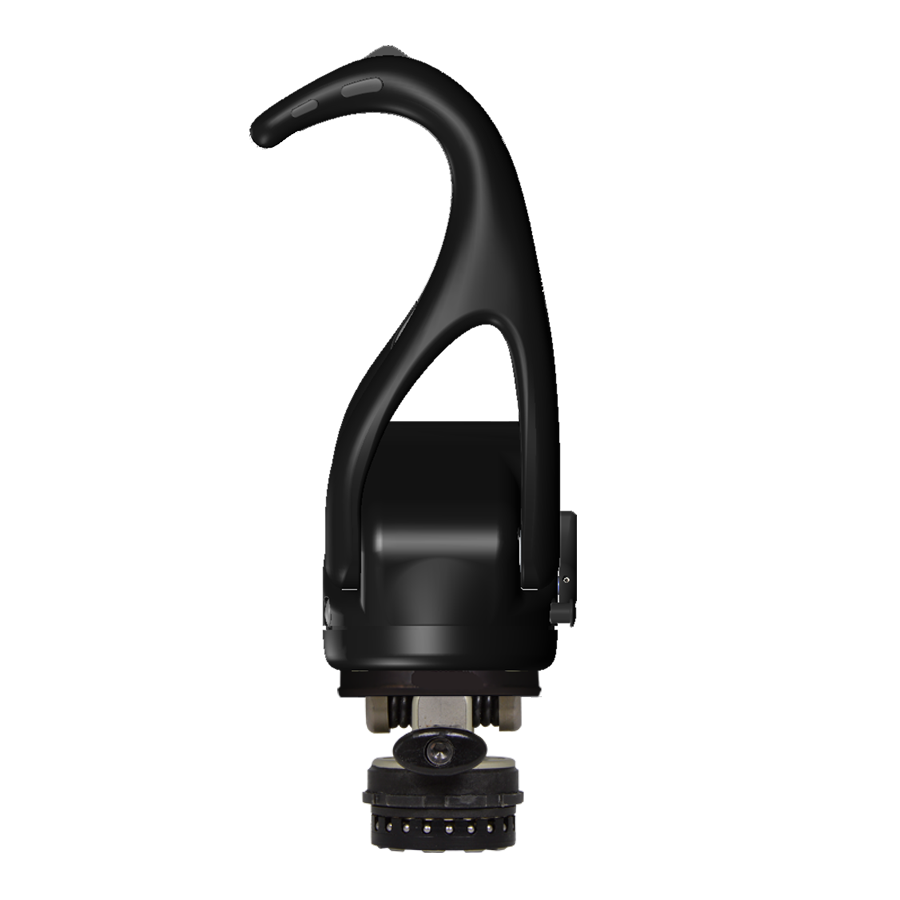

ETD2 with Multi-Flex Wrist

The ETD2 is a new standard in compact aesthetic design, while maintaining the rugged, water resistant functionality of an electric hook. For durability and high speed, a brushless DC motor is used. Features outside friction pads, wide fingers, replaceable gripping surfaces, a manual safety release, and has an optional water-resistant sleeve. Both Standard or Heavy Duty finger cores are available. The MC ETD2 can be used with the Utah Arm, Motion Arm or ProControl 2 system. The ETD2 ProPlus features a controller inside the ETD2 allowing interchange with other manufacturers’ systems. Force Limiting Autograsp (FLAG) for regulated pinch force is also available. The Multi-Flex Wrist for the ETD2 moves in multiple directions and is spring loaded to the center of travel. The spring loaded centering provides a “natural” feel as the Wrist can flex in any direction as needed to adjust to the loads placed on it, and provides a more comfortable feel versus a rigid wrist. It locks at 30, 0 and -30 degrees of extension. The manual latch mechanism enables or disables the latch. When the latch is enabled, the Wrist is locked in flexion/extension, compliant in radial/ulnar deviation. When the latch is disabled, the wrist is unlocked and compliant in all directions. PDAC Approved. This item includes the ETD2 with a Multi-flex Wrist attached and configuration options.

Suggested L Codes: L6881, L6882, L6935, L7009, L7499, PDAC Approved

motioninfo@fillauer.com

Learn more about the differences and benefits between the two devices. You can also add FLAG for additional force control.

Choosing the best wrist for the patient.
