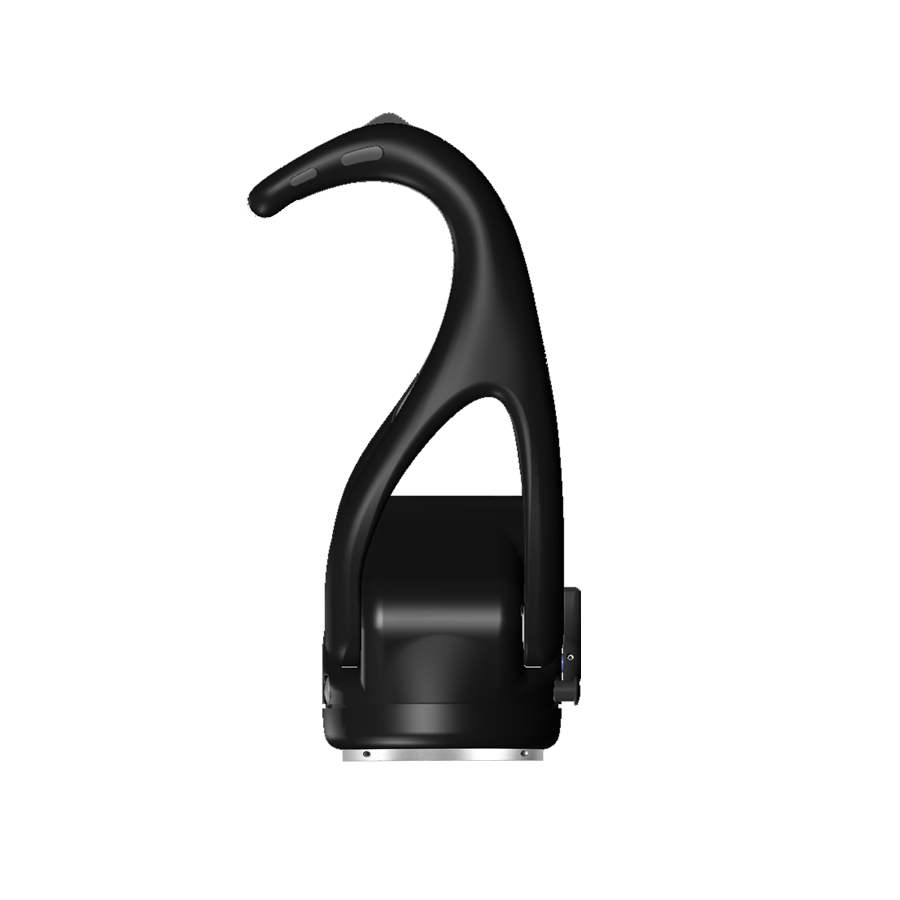

ETD2 with Wrist Disarticulation
The ETD2 is a new standard in compact aesthetic design, while maintaining the rugged, water resistant functionality of an electric hook. For durability and high speed, a brushless DC motor is used. Features outside friction pads, wide fingers, replaceable gripping surfaces, a manual safety release, and has an optional water-resistant sleeve. The MC ETD2 can be used with the Utah Arm, Motion Arm or ProControl 2 system. The ETD2 ProPlus features a controller inside the ETD2 allowing interchange with other manufacturers’ systems. Force Limiting Autograsp (FLAG) for regulated pinch force is also available. This item includes an ETD2 for direct lamination with wrist disarticulation and available options. No wrist included.
Suggested L Codes: L6881, L6882, L6935, L7009
PRODUCTS IN THIS SERIES:
Interested in these products?
ETD vs. ETD2 Feature Review
Learn more about the differences and benefits between the two devices. You can also add FLAG for additional force control.
Which Wrist Should I Choose?
Flexion
The Flexion Wrist allows a hand to be moved and locked at 30 degrees flexion and extension for optimal positioning while eating, driving, etc. A manual lever locks the Wrist in position.
Multi-Flex
The Multi-Flex Wrist moves in multiple directions and can be locked in place. The spring loaded centering provides a “natural” feel as the wrist can flex in any direction as needed to adjust to the loads placed on it.
Powered Flexion
The high-speed myo controller in the PFW provides proportional control of flexion/extension, a pause feature, TD/Wrist switching and hands-free targeting. The PFW is IPX7 water resistant.
Myo Wrist Choices.
Choosing the best wrist for the patient.
ETD2 DOCUMENTS
| LANGUAGE | PROSTHETIST | USER | |
|---|---|---|---|
 |
English | Prosthetist Manual | User Guide |
 |
Spanish/Español | Prosthetist Manual | User Guide |
 |
French/Français | Prosthetist Manual | User Guide |
 |
German/Deutsch | Prosthetist Manual | User Guide |
 |
Italian/Italiano | Prosthetist Manual | User Guide |
 |
Swedish/Svenska | Prosthetist Manual | User Guide |
 |
Norwegian/Norsk | Prosthetist Manual | User Guide |
 |
Danish/Dansk | Prosthetist Manual | User Guide |
 |
Dutch/Nederlands | Prosthetist Manual | User Guide |
 |
Finnish/Suomi | Prosthetist Manual | User Guide |
Additional ETD2 Manuals
